ABS Plastic Bottom Load Water Dispenser

Ningbo Aofukang Intelligent Technology Co., Ltd. provides flexible and efficient OEM customization services tailored to voltage standards, usage habits, functional configurations and appearance requirements of different countries and regions. We support customers in customizing brand logos, product specifications, functional modules and more, fully satisfying the diverse needs of overseas buyers, brand operators and various channel partners. With excellent quality, comprehensive services and highly competitive cost-performance ratio, Aofukang ABS Plastic Bottom Load Water Dispensers are exported to many countries and regions, winning wide recognition and trust from customers at home and abroad.

Send Inquiry

Product Description

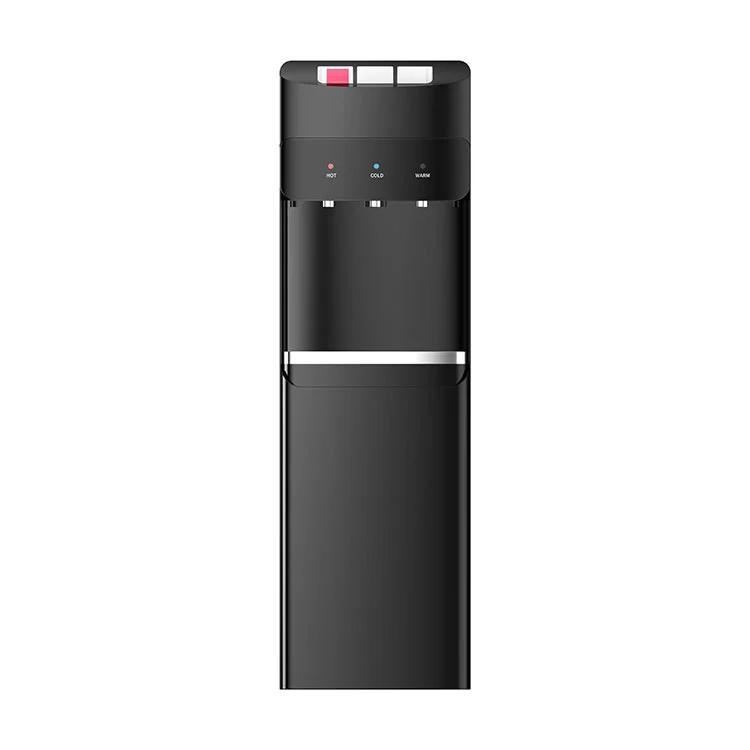

Produced by Ningbo Aofukang Intelligent Technology Co., Ltd. in its 7,153 m² Cixi plant, the AFK-2088-1 is an ABS Plastic Bottom Load Water Dispenser that places the water bottle in a concealed lower cabinet, removing the need to lift full bottles overhead. The body is constructed from high‑impact ABS polymer, chosen for its resistance to heat, scratches, and everyday wear. Three faucets supply hot (85–95 °C, 550 W), warm, and cold (5–10 °C, 90 W compressor) water. A 304 food‑grade stainless steel hot tank, dual anti‑dry‑burning protection, and a mechanical child lock on the hot‑water faucet are included as standard. Manufacturing follows ISO9001:2015 procedures; CE, CB, and RoHS compliance documents are maintained for this model.

Product Parameter

Model	AFK-2088-1
Water Temperature	Hot / Warm / Cold
Water Spout	3
Child Lock	Yes
Cooling Method	Compressor Cooling
Rated Voltage / Frequency	220-240V 50/60Hz
Heating Power / Capacity	550W / 5 L/h (85-95℃)
Cooling Power / Capacity	90W / 2.0 L/h (5-10℃)
Product Dimensions	360 × 360 × 1060 mm
Packing Dimensions	320 × 310 × 1005 mm
Package	5-Layer Brown Carton Box
Load Quantity (40HQ)	450 PCS

Body Material & Internal Safety

ABS plastic body and stainless steel tank

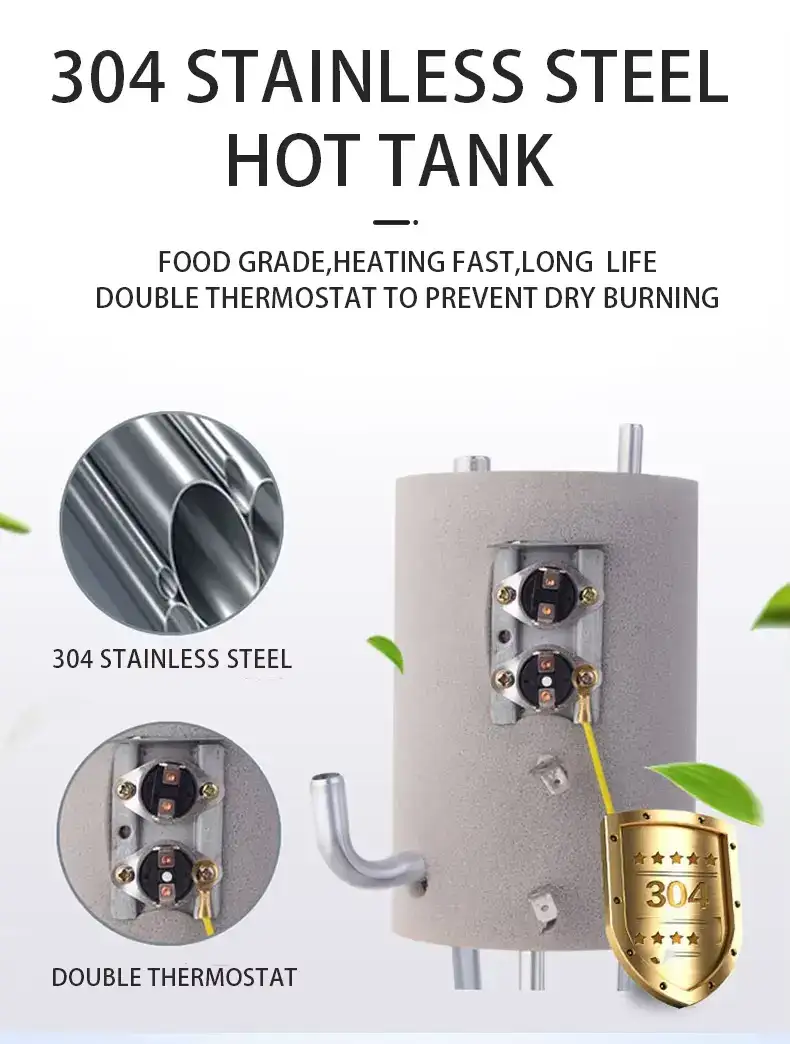

The outer shell is moulded from high‑impact ABS resin, a material selected for its durability, light weight, and ability to retain its surface finish after repeated cleaning. ABS also withstands the moderate heat emitted by the internal components and resists yellowing over time. Internally, the hot water is contained in a 304 food‑grade stainless steel tank. The tank's smooth, non‑porous surface minimises scale attachment and bacterial growth, and the material itself does not impart taste or odour to the water.

Two independent devices guard against dry‑burning: a float‑operated switch linked to the water level and an electronic thermostat that breaks the heating circuit if the tank overheats. Together they ensure the heating element cannot operate when the tank is empty or the temperature is outside the safe window.

Cooling Technology

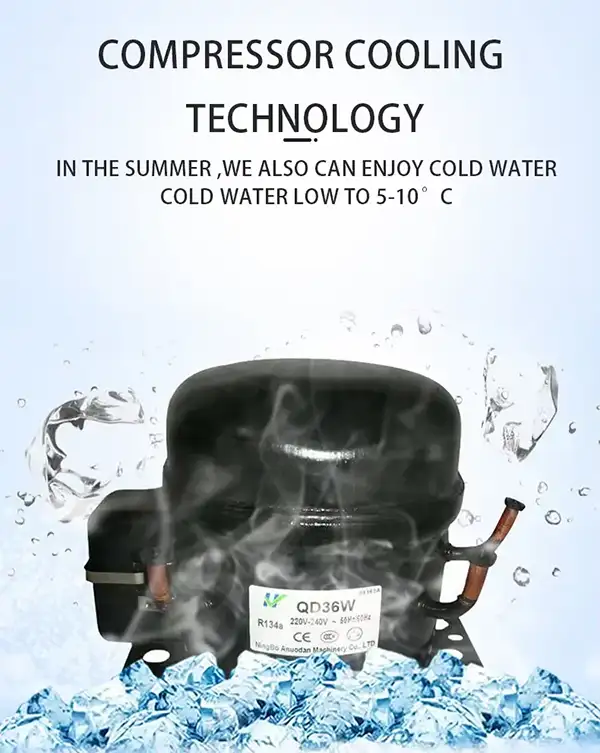

Cold water is produced by a 90 W hermetic compressor connected to an air‑cooled condenser. A thermostat inside the cold reservoir activates the compressor as needed, keeping the water between 5 °C and 10 °C. Because the cooling and heating circuits are isolated, pulling several cups of cold water does not diminish the available hot water. The compressor is a sealed unit and does not require refrigerant top‑ups during normal household or office use.

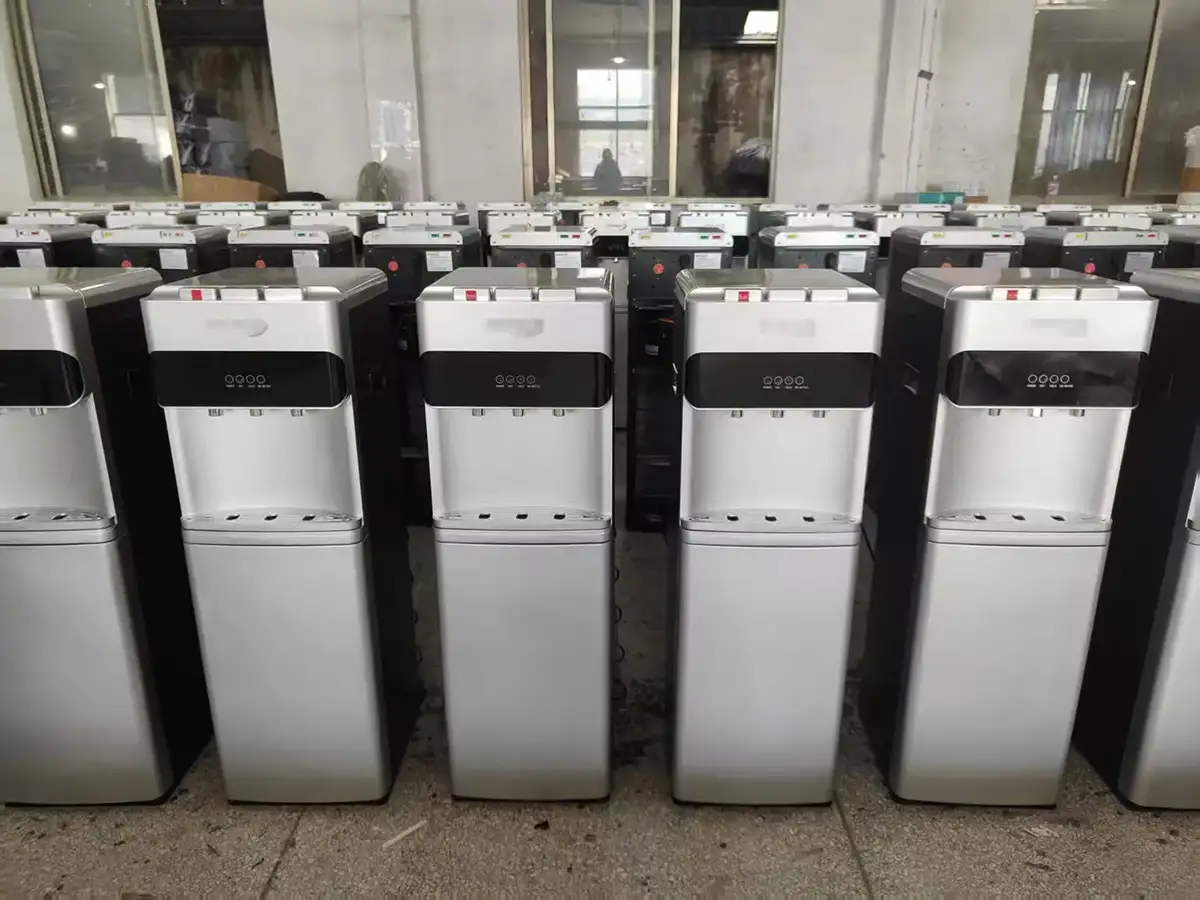

Compressor cooling and bottle compartment

Bottle Loading & Daily Use

Bottom load cabinet

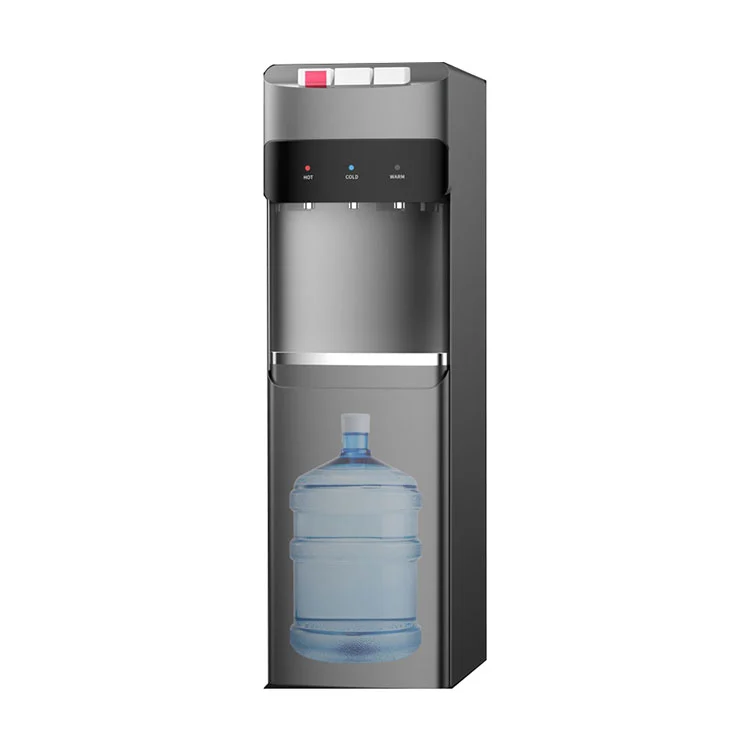

The water bottle sits inside a lower cabinet accessed through a removable front panel. A small diaphragm pump moves water from the bottle to the upper tanks; it runs only when the tanks need topping up. Changing the bottle means sliding the empty out and a full one in along the cabinet base—no lifting overhead. The compartment fits standard 3‑ and 5‑gallon round bottles with a 55 mm neck. Three push‑type faucets dispense hot, warm, and cold water, and the hot‑water faucet includes a mechanical child lock that requires a deliberate two‑step action to activate.

Where This Dispenser Is Used

The AFK-2088-1 is suited to locations where bottled water is the preferred supply method. In households, the bottom‑load design spares family members from lifting heavy bottles, and the ABS body withstands the knocks of a busy kitchen. Office pantries and small retail spaces use it to provide instant hot water for tea and coffee alongside chilled drinking water, without needing a plumbed‑in connection. It is also found in community halls and temporary worksites, where the only utility required is a standard power socket. The concealed bottle keeps the area looking tidy, and the child lock limits access to the hot water when children are present.

Certifications & Manufacturing

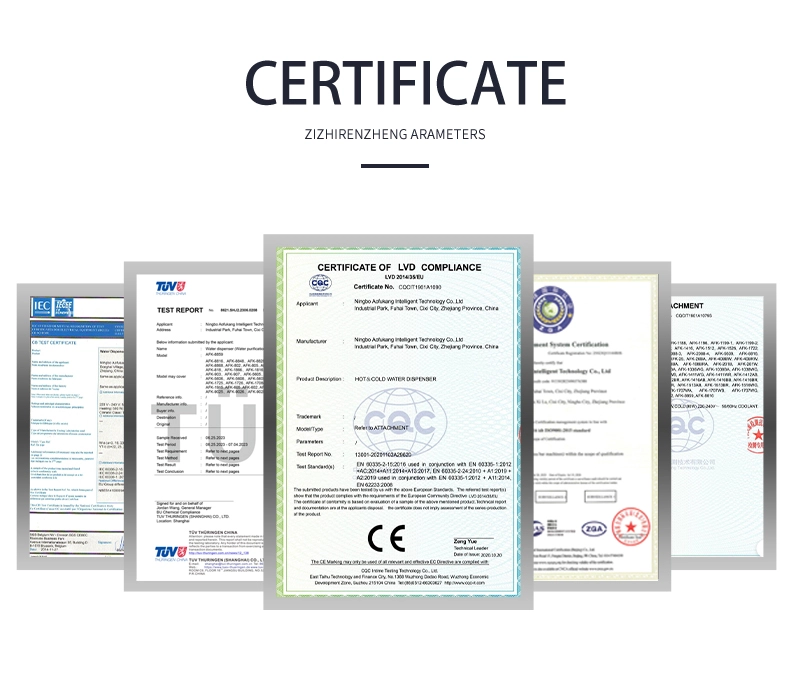

Before packing, each AFK-2088-1 is put through a standard factory inspection: water‑circuit leak test, electrical safety verification (ground bond and insulation), heating and cooling cycle check, and a final visual inspection. The certificates below are held by Aofukang and are applicable to this dispenser.

16+ Patents & Trademarks

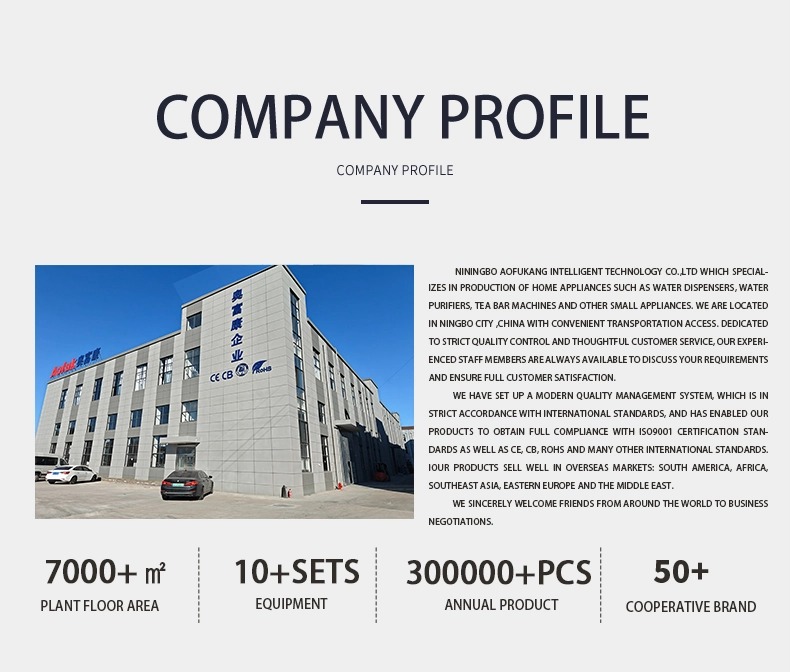

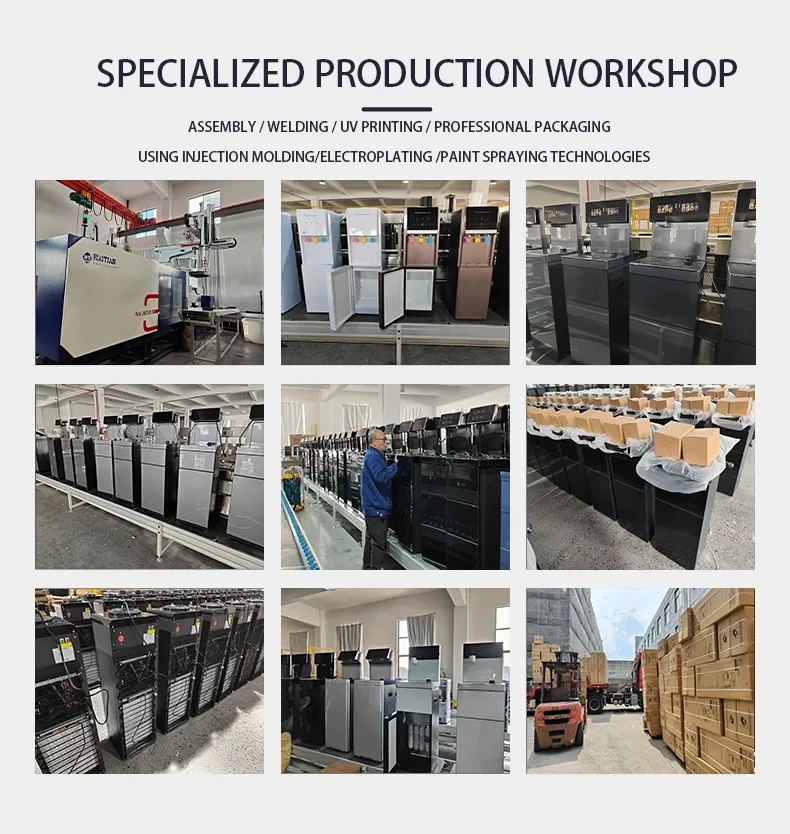

The Cixi factory covers 7,153 m², runs 6 assembly lines, and produces over 300,000 units annually. In‑house injection moulding, metal stamping, and a dedicated tooling workshop allow direct control over component quality. Customisation—branding, colour, voltage, packaging—is offered with a minimum order of 100 pieces.

Frequently Asked Questions

Q: How does the ABS body compare to metal‑panelled dispensers?

A: ABS is lighter than steel and equally resistant to dents and scratches in typical indoor use. It does not rust and can be wiped clean with standard household cleaners. While metal panels offer a premium look, ABS keeps the unit weight lower and is less prone to visible fingerprints.

Q: Is the front panel removable for cleaning or access?

A: Yes, the lower front panel that covers the bottle compartment can be taken off without tools. This allows easy cleaning of the cabinet interior and gives full access when changing the bottle.

Q: What is the weight of the unit, and how many people are needed to move it?

A: The empty dispenser weighs approximately 15 kg. One person can tilt and roll it short distances on its base edge, but lifting it onto a higher surface is best done by two people.

Q: Can the hot water be switched off if only cold water is needed?

A: Yes, a separate switch on the rear of the unit turns off the hot‑water function independently. The cooling and warm‑water faucets continue to operate normally.
