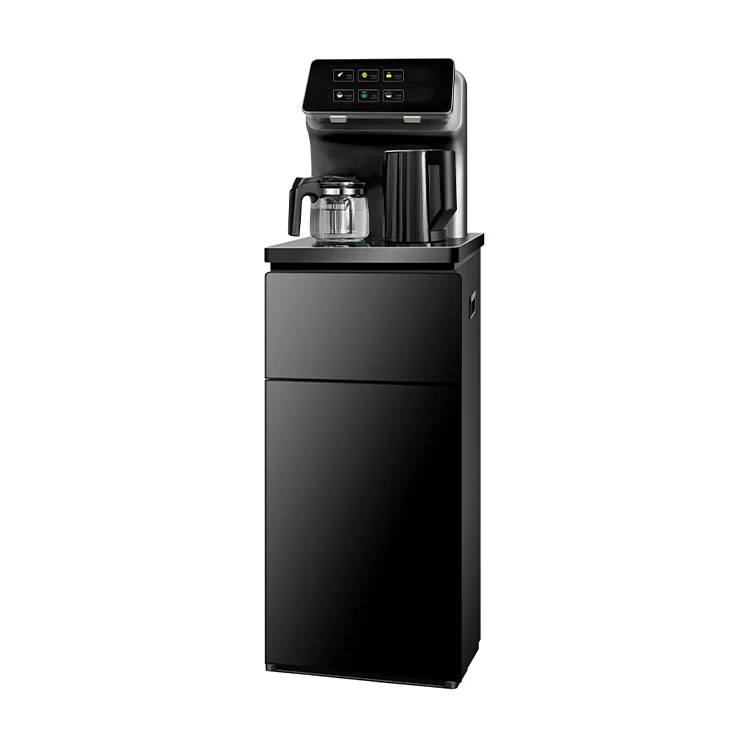

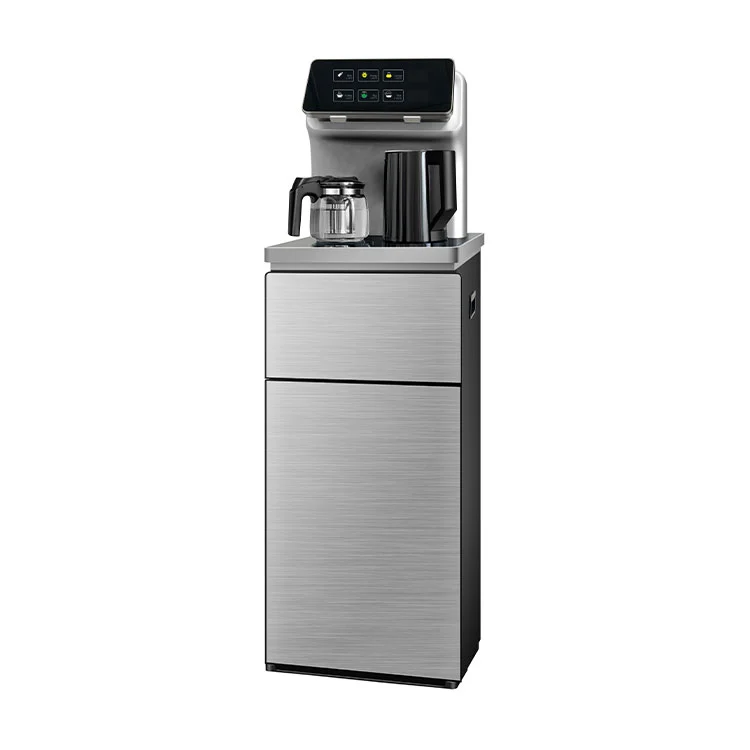

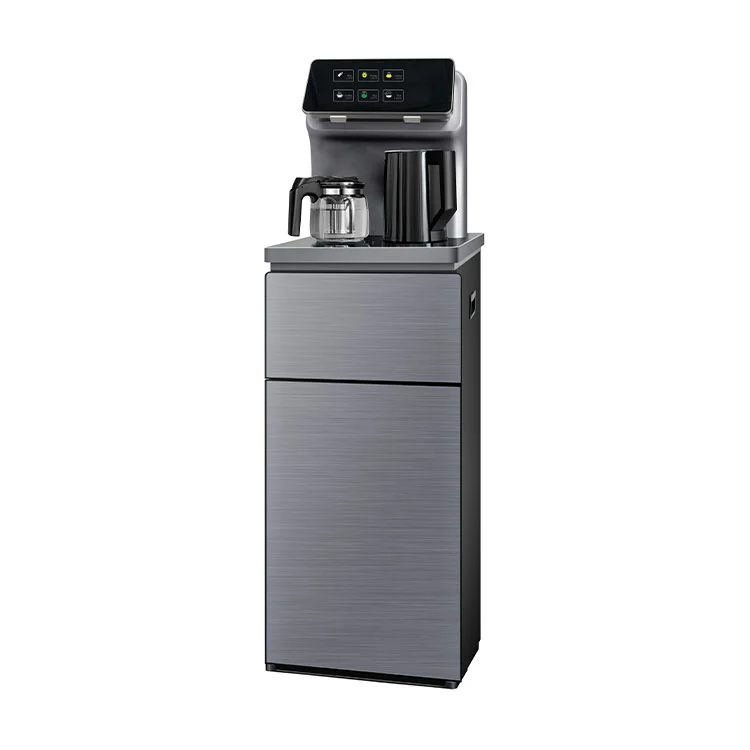

Cold and Hot Dual Control Tea Bar Machine Water Dispenser

Ningbo Aofukang AFK-1720 Cold and Hot Dual Control Tea Bar Machine Water Dispenser is designed with dual independent heating kettles and a compressor cooling system for flexible beverage preparation. With adjustable temperatures from 50–100°C, separate LED temperature displays, child lock protection, and enclosed storage cabinet, it provides convenient hot, warm, and cold water solutions for offices, homes, and commercial tea areas. Built under ISO9001:2015 standards with CE, CB, and RoHS compliance.

Send Inquiry

Product Description

Produced by Ningbo Aofukang Intelligent Technology Co., Ltd. in Cixi, the AFK-1720 is a Cold and Hot Dual Control Tea Bar Machine Water Dispenser with twin kettles and a compressor‑cooled cold‑water circuit. Each kettle heats independently from 50 °C to 100 °C (1350 W, up to 8 L/h), while the cold side holds 5–10 °C via a 90 W compressor. Two LED panels show the temperature of each circuit separately. A child‑lock function protects the hot‑water dispense. The lower cabinet is sealed against dust for storing cups and tea accessories. The unit is built under ISO9001:2015 management and carries CE, CB, and RoHS approvals.

Product Parameter

Model	AFK-1720
Water Temperature	Hot / Warm / Cold
Water Spout	2
Child Lock	Yes
Cooling Method	Compressor Cooling
Rated Voltage / Frequency	220-240V 50/60Hz
Heating Power / Capacity	1350W / 8 L/h (50-100℃)
Cooling Power / Capacity	90W / 2.0 L/h (5-10℃)
Product Dimensions	370 × 345 × 1150 mm
Packing Dimensions	382 × 410 × 860 mm
Package	5-Layer Brown Carton Box
Load Quantity (40HQ)	510 PCS

Dual Kettle Configuration & Independent Heating

Two identical kettles rest on the top platform. Each is powered through its own base connector and can be set to a different target temperature between 50 °C and 100 °C. This arrangement lets users dedicate one kettle to boiling water for tea or coffee while the other holds warm water for direct drinking. Both kettles are removable for filling at a sink; the connectors are designed to withstand daily handling. A child‑lock button on the front panel cuts power to both kettles' dispense circuits when pressed.

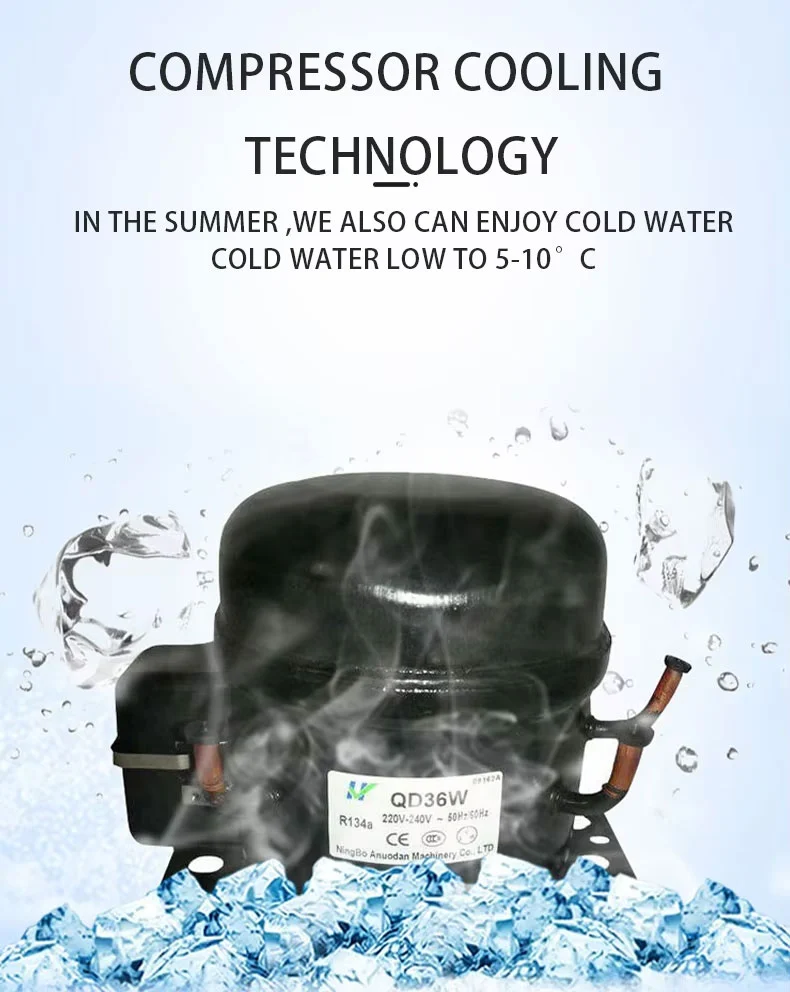

Cold‑Water Circuit & Compressor Cooling

Chilled water is produced by a 90 W hermetic compressor, held in an insulated reservoir and maintained at 5–10 °C by a thermostat. The compressor cycles on demand and runs independently of the heating kettles. Because it is a sealed unit, refrigerant servicing is not part of routine maintenance.

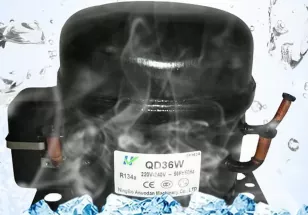

Internal compressor cooling unit

Dual Temperature Readouts

Two separate LED panels sit on the front console. One displays the cold‑water temperature, the other shows the current temperature of the selected kettle. The numbers update in real time as the water heats or cools. No menu navigation is required; the readings are visible at a glance.

Dual LED temperature display panels

Enclosed Lower Cabinet

The storage compartment sits below the dispense area. Its door is fitted with a magnetic catch and closes against a dust‑resistant seal. The interior is separated from the water lines and compressor housing, so stored items remain dry. Tea tins, spare cups, coffee packets, and cleaning cloths are commonly kept here.

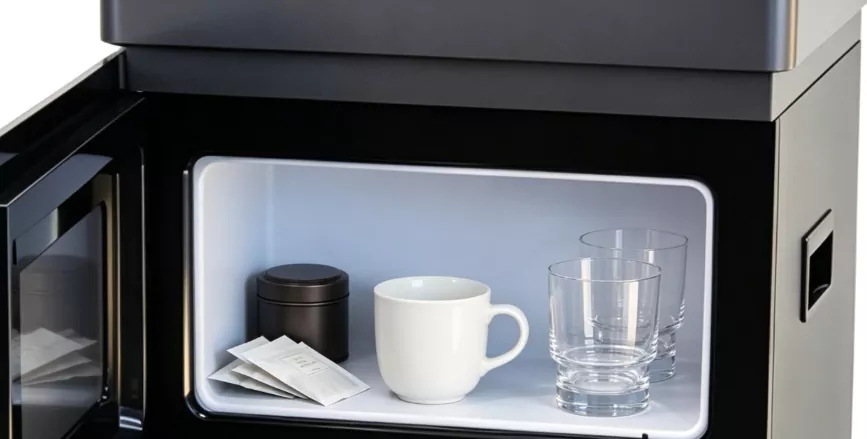

Built-in dustproof storage cabinet with door open

Factory Certifications & Quality Control

Each AFK-1720 is inspected before shipping: water‑circuit leak test, electrical safety verification, compressor cooling cycle check, and kettle heating and safety‑cut‑off confirmation. Aofukang holds the certificates shown below, which are valid for this model.

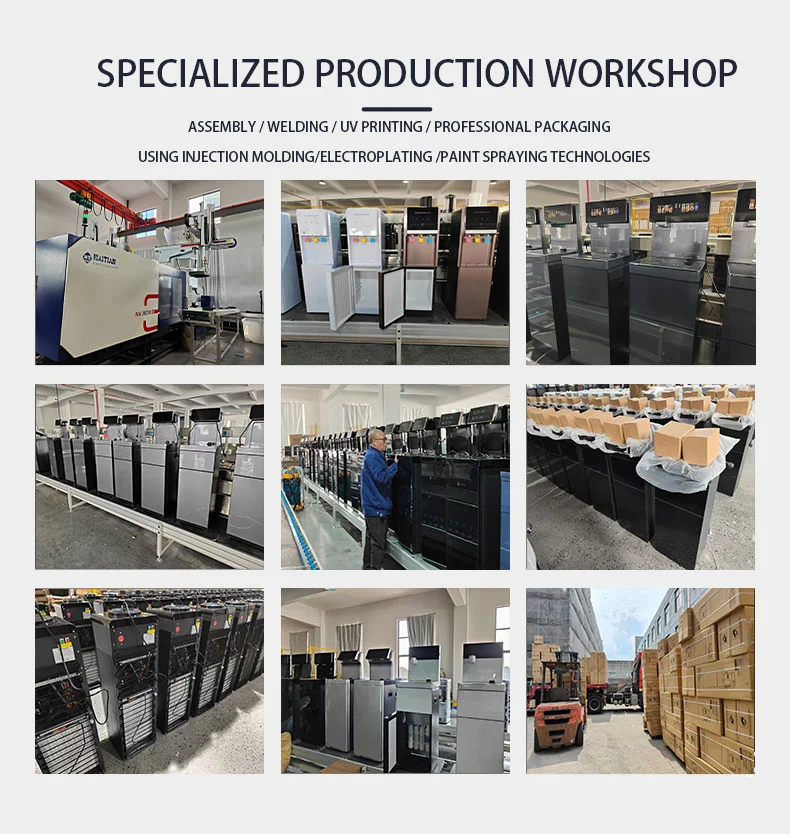

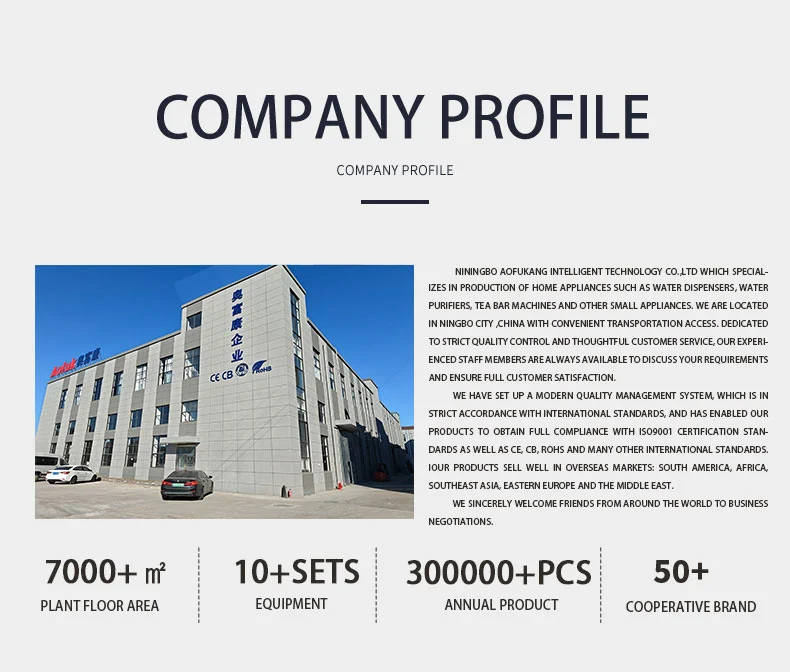

The Cixi production site covers 7,153 m², operates 6 assembly lines, and turns out more than 300,000 units per year. In‑house injection moulding and sheet‑metal fabrication give the factory direct control over the body panels and internal components. Custom branding, voltage options, and packaging are supported under OEM terms (minimum order quantity applies).

Frequently Asked Questions

Q: Can both kettles heat at the same time?

A: Yes. Each kettle has its own power circuit and thermostat, so they can operate simultaneously. One can be boiling while the other maintains a lower temperature.

Q: Are the kettles cordless?

A: The kettles sit on powered base connectors built into the top deck. They lift off without unplugging any cord and can be carried to a sink for filling or cleaning.

Q: How long does the cold water stay chilled after the compressor cycles off?

A: The insulated reservoir keeps the water cool for several hours. In practice, the compressor cycles on and off throughout the day, so the temperature stays within the 5–10 °C band under normal use.

Q: Is there any indicator when a kettle is empty or not seated correctly?

A: The kettle base includes a micro‑switch that only engages when the kettle is properly seated. If the kettle is removed or misaligned, the heating circuit does not activate, and the corresponding display shows no temperature reading.
