Product Description

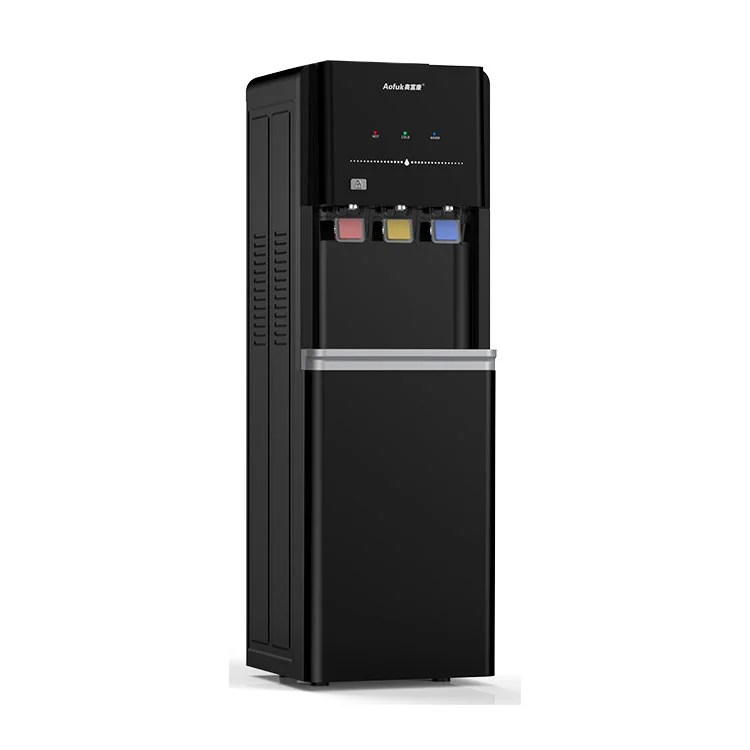

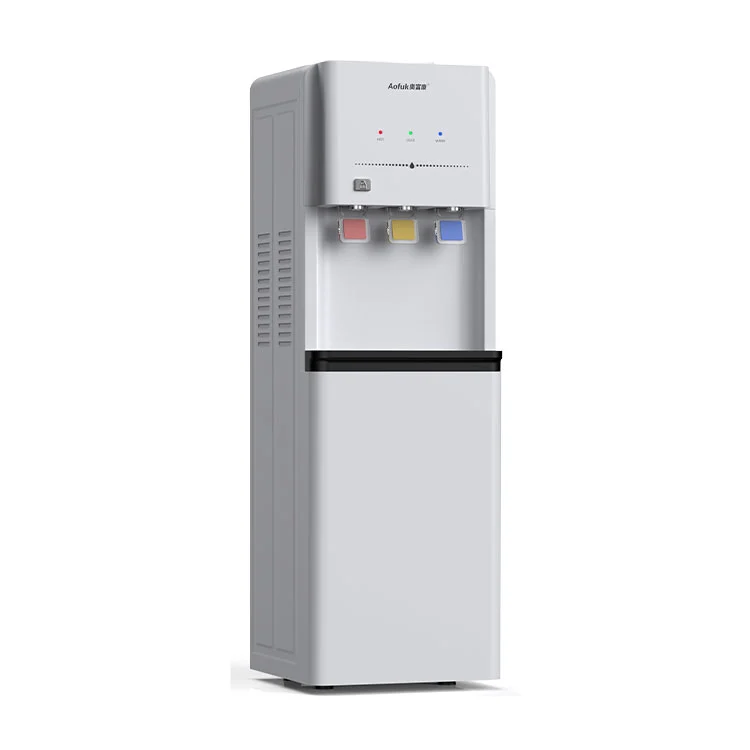

The AFK-1708 from Ningbo Aofukang Intelligent Technology Co., Ltd. is a Home Pipeline Water Dispenser designed for direct connection to a household purified water line. It supplies hot (85–95°C), warm, and cold (5–10°C) water via three independent faucets. Built around a 304 food-grade stainless steel hot water tank and a hermetic compressor cooling system, the unit includes dual temperature control and anti-dry-burning protection. Manufactured in the company's Cixi, Zhejiang factory under ISO9001:2015 procedures, it holds CE, CB, and RoHS certifications. The dispenser's compact footprint and metal side panels make it suitable for kitchens, living rooms, and home studies where both functionality and appearance matter.
Product Parameter
| Model | AFK-1708 |
| Water Temperature | Hot / Warm / Cold |
| Water Spout | 3 |
| Child Lock | Yes |
| Cooling Method | Compressor Cooling |
| Rated Voltage / Frequency | 220-240V 50/60Hz |
| Heating Power / Capacity | 550W / 8 L/h (85-95℃) |
| Cooling Power / Capacity | 90W / 2 L/h (5-10℃) |
| Product Dimensions | 310 × 310 × 960 mm |
| Packing Dimensions | 340 × 330 × 980 mm |
| Package | 5-Layer Brown Carton Box |
| Load Quantity (40HQ) | 640 PCS |
Core Components & Design

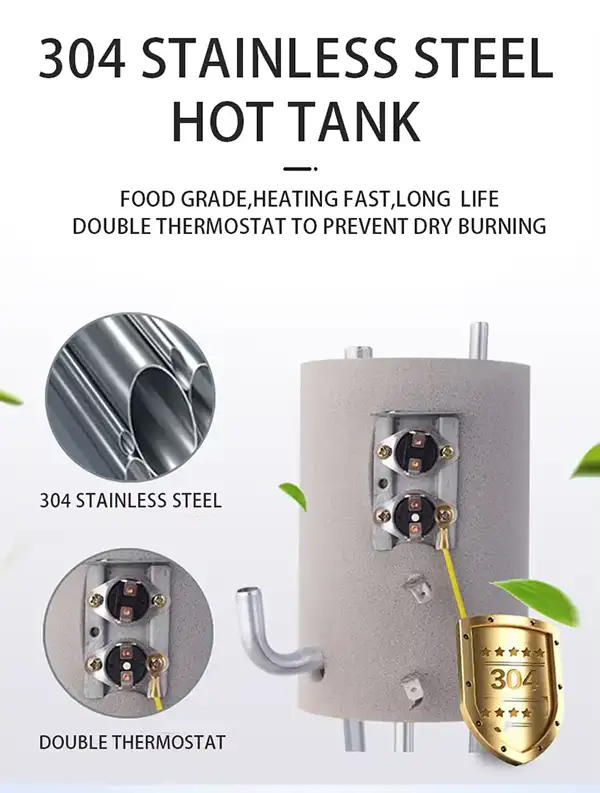

304 Stainless Steel Hot Water Tank
The hot water circuit uses a tank made from 304 food-grade stainless steel. This material is chosen for its corrosion resistance at sustained temperatures above 90°C and its inert surface, which does not release foreign substances into the stored water. The tank's smooth inner wall reduces mineral scale adhesion and simplifies periodic flushing. A built-in dual temperature control system continuously monitors water level and temperature. If the water level falls below the safe minimum or the temperature exceeds the upper limit, the heating element disconnects automatically to prevent dry-burning and component damage. Under normal conditions, the control module maintains a stable hot water output of 8 liters per hour.

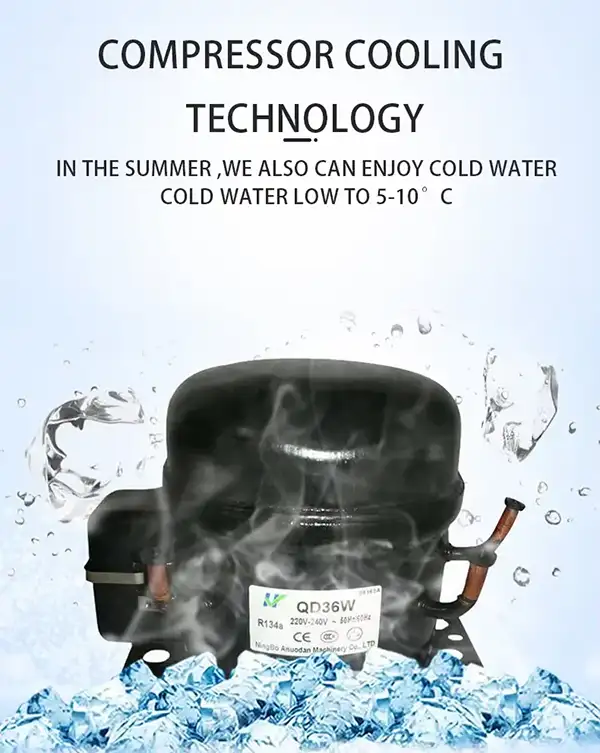

Compressor Cooling System
Cold water is delivered by a hermetic compressor cooling circuit, which differs from thermoelectric coolers in both cooling speed and sustained low-temperature capability. The system maintains an outlet temperature of 5–10°C and holds this range even when dispensing continuously in a warm room. The compressor operates independently from the heating circuit, so drawing chilled water does not reduce the available hot water. No refrigerant maintenance is required under normal household use. The cooling loop is designed for daily cycling and supports year-round switching between hot and cold modes according to seasonal preference.
Metal Side Panels with Anti-Fingerprint Finish
The side panels are constructed from thickened steel plates that have undergone wire-drawing, anti-corrosion treatment, and an anti-fingerprint coating. This combination results in a surface that resists scratches, heat, and deformation better than standard ABS plastic panels. Fingerprints and minor spills wipe off with a dry or damp cloth. The panels retain their original texture and color over extended use, addressing a common complaint with plastic-bodied dispensers in sunny or high-traffic areas of the home. The metal construction also adds structural rigidity, contributing to the overall stability of the unit on hard or carpeted floors.
Product Gallery

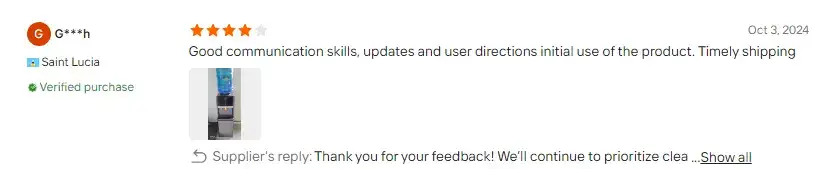

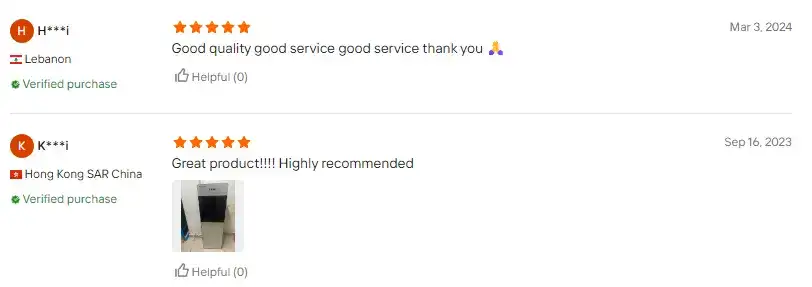

The following images show the AFK-1708 in various home settings. They have been provided by end users and reflect the unit's appearance in real kitchen and living room environments.
Certifications & Manufacturing Standards

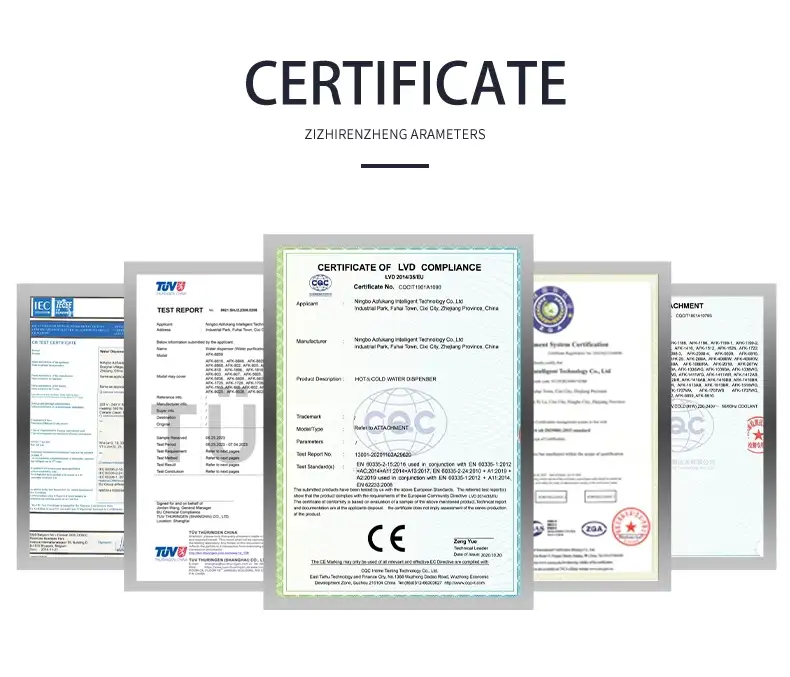

The AFK-1708 is produced at Aofukang's integrated facility in Cixi, which covers injection molding, metal fabrication, assembly, and testing. Each unit goes through a standard inspection checklist—water circuit integrity, electrical safety (ground bond and insulation), heating/cooling cycle performance, and visual quality—before being packed. The certifications shown here apply to this model and are available for customs clearance upon request.

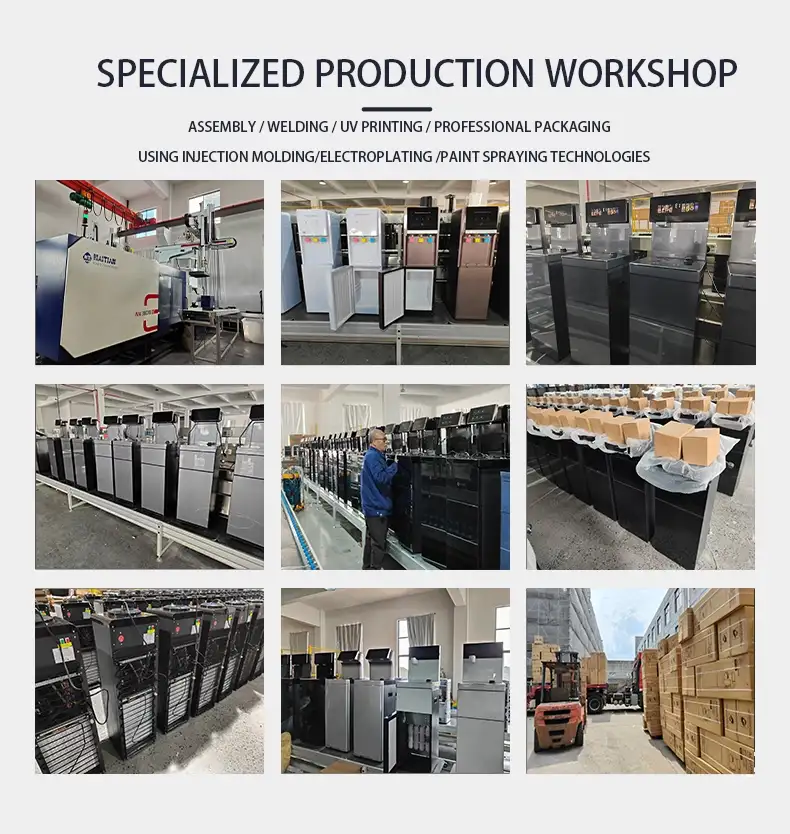

The Cixi production base measures 7,153 m² and houses 6 assembly lines with an annual capacity above 300,000 units. In-house mold making and metal stamping give us direct control over component tolerances. For brand buyers, we support OEM adjustments—panel color, logo, voltage, and packaging—with the same 100-unit MOQ.
Frequently Asked Questions
Q: What kind of water supply does this dispenser need?
A: The AFK-1708 is a pipeline water dispenser. It must be connected to a household purified water line, typically from an under-sink RO system or a whole-house filtration setup. It does not purify water internally, so only pre-treated water should enter the unit. The connection uses standard ¼-inch or ⅜-inch tubing depending on your local plumbing fittings.
Q: How loud is the compressor during operation?
A: The compressor noise level is comparable to a small household refrigerator. In a quiet kitchen, the sound is noticeable only when the cooling cycle activates, which occurs intermittently based on water usage. It is designed to be unobtrusive in a living room or study environment during normal operation.
Q: How do I clean and maintain the metal side panels?
A: The anti-fingerprint coated panels require only a soft, dry cloth for daily dusting. For tougher marks, a damp cloth with mild soap can be used. Abrasive cleaners or scouring pads should be avoided to preserve the brushed finish. No special polishing or oiling is needed.
Q: Can this dispenser replace a bottled water cooler completely?
A: Yes, provided you have a consistent purified water line. The AFK-1708 eliminates the need to store, lift, and replace heavy water bottles. It also removes the risk of running out of water unexpectedly, as the supply is continuous. The built-in hot water function further replaces the need for a separate electric kettle for daily beverages.
