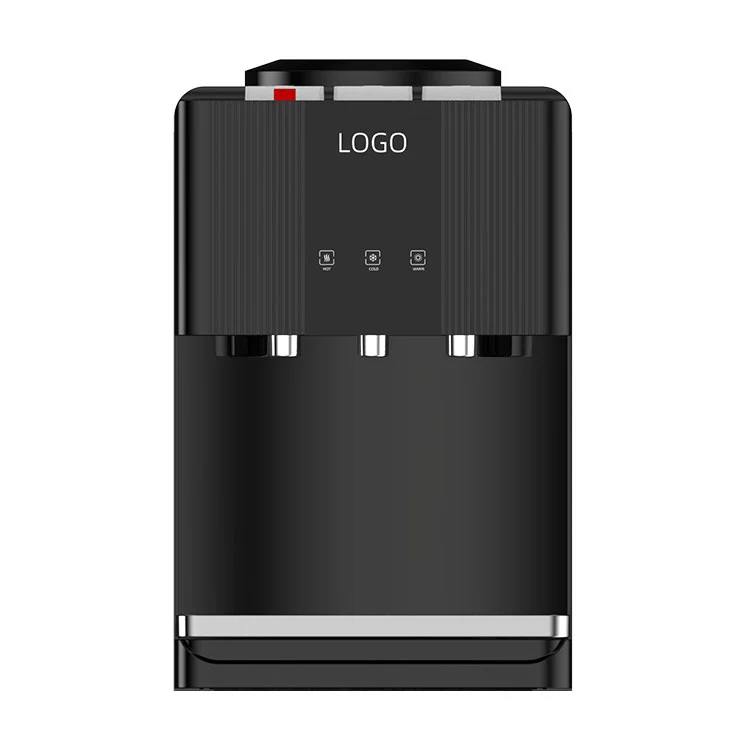

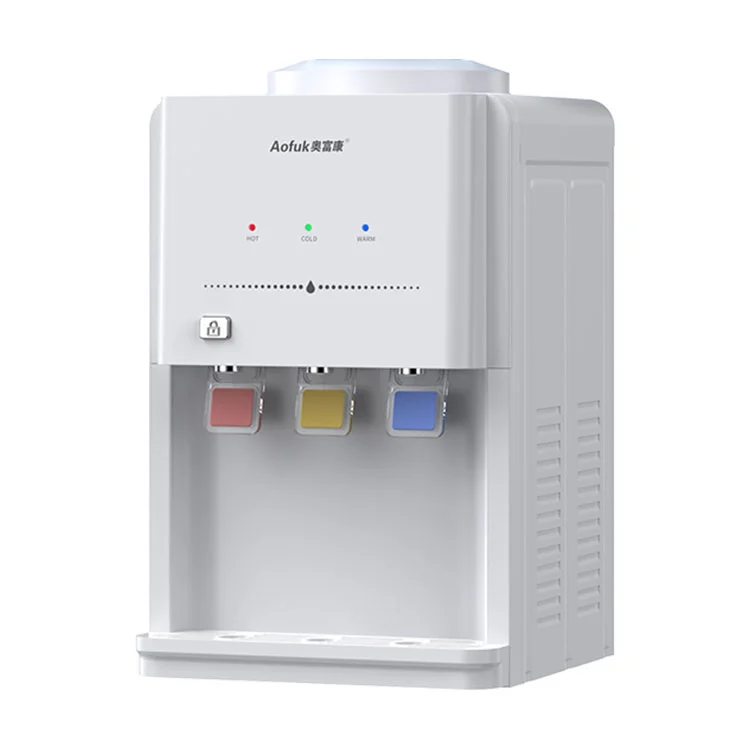

Piano Button Desktop Water Dispenser

Ningbo Aofukang Intelligent Technology Co., Ltd. specializes in manufacturing water dispensers. We possess international certifications such as CB and CE, and implement the ISO9001 quality management system. We provide customized OEM services to meet the requirements of water dispensers in various countries.This Piano button desktop water dispenser integrates cooling and heating functions, providing cold and hot water quickly to meet different drinking needs in all seasons. Compact and space-saving, Piano button can be placed directly on desks and countertops, suitable for homes, offices, dormitories and other places.It is easy to operate with stable and smooth water output, offering sufficient hot water and refreshing cold water without long waiting. Designed with anti-dry boiling and anti-leakage protections for safe and reliable use. With a simple and Compact Desktop Body, it combines practicality and aesthetics, bringing comfortable and convenient experience for daily drinking.

Send Inquiry

Product Description

The Piano Button Desktop Water Dispenser sits on a countertop and dispenses hot (85–95 °C), warm, and cold (5–10 °C) water through three piano‑key style buttons. It is built with a 304 food‑grade stainless steel hot‑water tank, a 550 W heating element, and a 90 W compressor cooling circuit. The compact body measures 315 × 310 × 510 mm and weighs approximately 12 kg. Manufactured at Ningbo Aofukang Intelligent Technology Co., Ltd. in Cixi under ISO9001:2015 procedures, the unit carries CE, CB, and RoHS compliance. A child‑lock function is integrated into the hot‑water key.

Product Parameter

Model	AFK-118
Water Temperature	Hot / Warm / Cold
Water Spout	3
Child Lock	Yes
Cooling Method	Compressor Cooling
Rated Voltage / Frequency	220-240V 50/60Hz
Heating Power / Capacity	550W / 8 L/h (85-95℃)
Cooling Power / Capacity	90W / 2 L/h (5-10℃)
Product Dimensions	315 × 310 × 510 mm
Packing Dimensions	340 × 330 × 540 mm
Package	5-Layer Brown Carton Box
Load Quantity (40HQ)	1120 PCS

Design & Key Controls

The dispenser is operated by three mechanical piano‑key switches, each marked for hot, warm, or cold water. The keys give a distinct click and return to their neutral position when released. The hot‑water key includes a child‑lock slider; the slider must be pushed across before the key can be depressed, helping to prevent unsupervised access to hot water.

With a footprint of 315 × 310 mm, the AFK-118 occupies roughly the same counter area as a small microwave. It can be placed on a kitchen worktop, a side table in an office pantry, or a shelf in a break room. The top surface is flat and can hold a cup or a small tray. The housing is made from ABS plastic with a satin finish that resists fingerprints and can be wiped clean with a damp cloth.

Internal Tank & Safety Protections

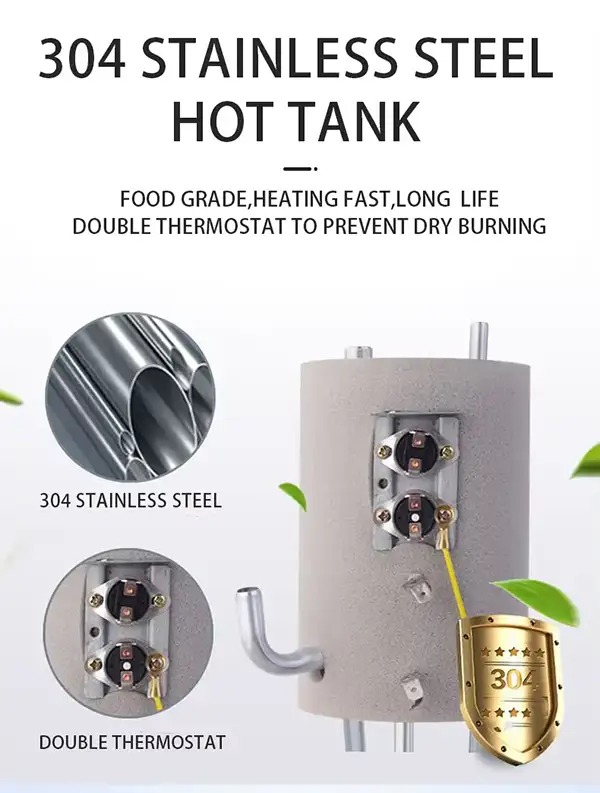

The hot‑water circuit uses a 304 food‑grade stainless steel tank with a seamless interior. The material does not leach substances into the water and resists scale accumulation better than coated alternatives. A 550 W immersion heater raises the temperature to 85–95 °C, producing up to 8 litres of hot water per hour.

Two independent protection devices are built into the heating circuit: a float‑activated cut‑off that disconnects power if the water level drops too low, and an electronic thermostat that breaks the circuit if the tank overheats. This dual arrangement prevents dry‑burning and protects the heating element during continuous operation. A separate 90 W compressor provides the cold‑water loop, delivering water at 5–10 °C through a thermostat‑controlled cycle.

Setup & Daily Use

The AFK-118 works as a top‑loading bottled‑water dispenser. It accepts standard 3‑ or 5‑gallon bottles with a 55 mm neck. The bottle sits on top of the unit; a piercing valve opens the bottle as it is lowered into place. No electrical pump is needed because the water flows into the internal tanks by gravity.

Once a bottle is loaded, the hot and cold tanks fill automatically. The heating and cooling circuits can be switched on independently using the rocker switches on the back of the unit. The warm‑water faucet supplies water at room temperature from a bypass reservoir. The drip tray underneath the spouts slides out for emptying.

Where It Fits

The AFK-118 is used in home kitchens, home offices, studio apartments, and small office pantries where counter space is limited but a full‑size floor dispenser is not practical. It is also placed in hotel rooms, dormitories, and waiting areas where a compact drinking‑water point is needed. The top‑load design means no plumbing connection is required; only a power socket is necessary.

Factory Certifications & Quality Control

Each AFK-118 is inspected before packing: water‑circuit leak test, electrical safety check (ground bond and insulation resistance), heating and cooling cycle verification, and visual quality review. Aofukang holds the certifications below, which apply to this model and can be supplied for import documentation.

CE – European Conformity

CB – IECEE Scheme

ISO9001 – Quality Management

RoHS – Hazardous Substances

CCC – China Compulsory

16+ Patents & Trademarks

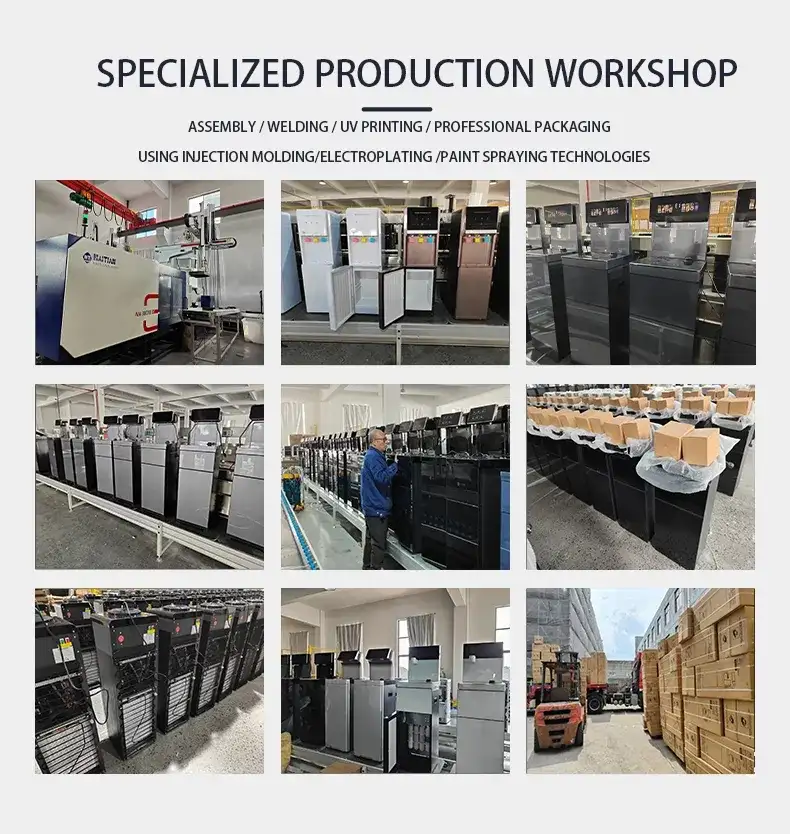

The Cixi factory covers 7,153 m², runs 6 assembly lines, and produces over 300,000 units annually. In‑house injection moulding and tooling allow direct control over the ABS body and internal components. OEM customisation—colour, logo, packaging—is available with a minimum order quantity of 100 units.

Frequently Asked Questions

Q: Can the piano keys be removed for cleaning?

A: The key caps can be pulled off for cleaning and are replaceable if a key ever becomes loose. Replacement key sets are stocked as spare parts.

Q: What is the warm water temperature, and does it pass through the hot tank?

A: Warm water is delivered at near room temperature and comes from a separate bypass line. It does not pass through the hot tank, so there is no mixing of heated and ambient water.

Q: How tall a cup or bottle can fit under the spout?

A: The clearance from the spout to the drip tray is approximately 16 cm. Most standard mugs and travel bottles fit without tilting. For taller containers, you can remove the drip tray to gain an extra 3 cm.

Q: Does the dispenser work with a water purification system instead of bottled water?

A: The AFK-118 is designed for bottled water. It can be paired with a countertop bottle‑filling pump fed by an under‑sink purifier, but this is not a factory‑supplied modification. The bottle seat is sized for 55 mm necks only.
