Top Load Water Dispenser with Cabinet

Product Parameter

Design & Build

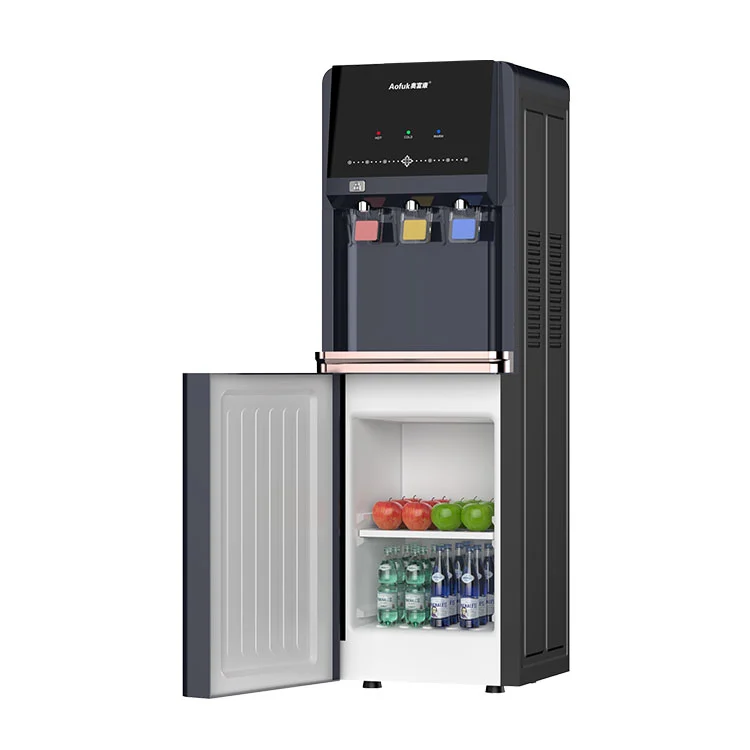

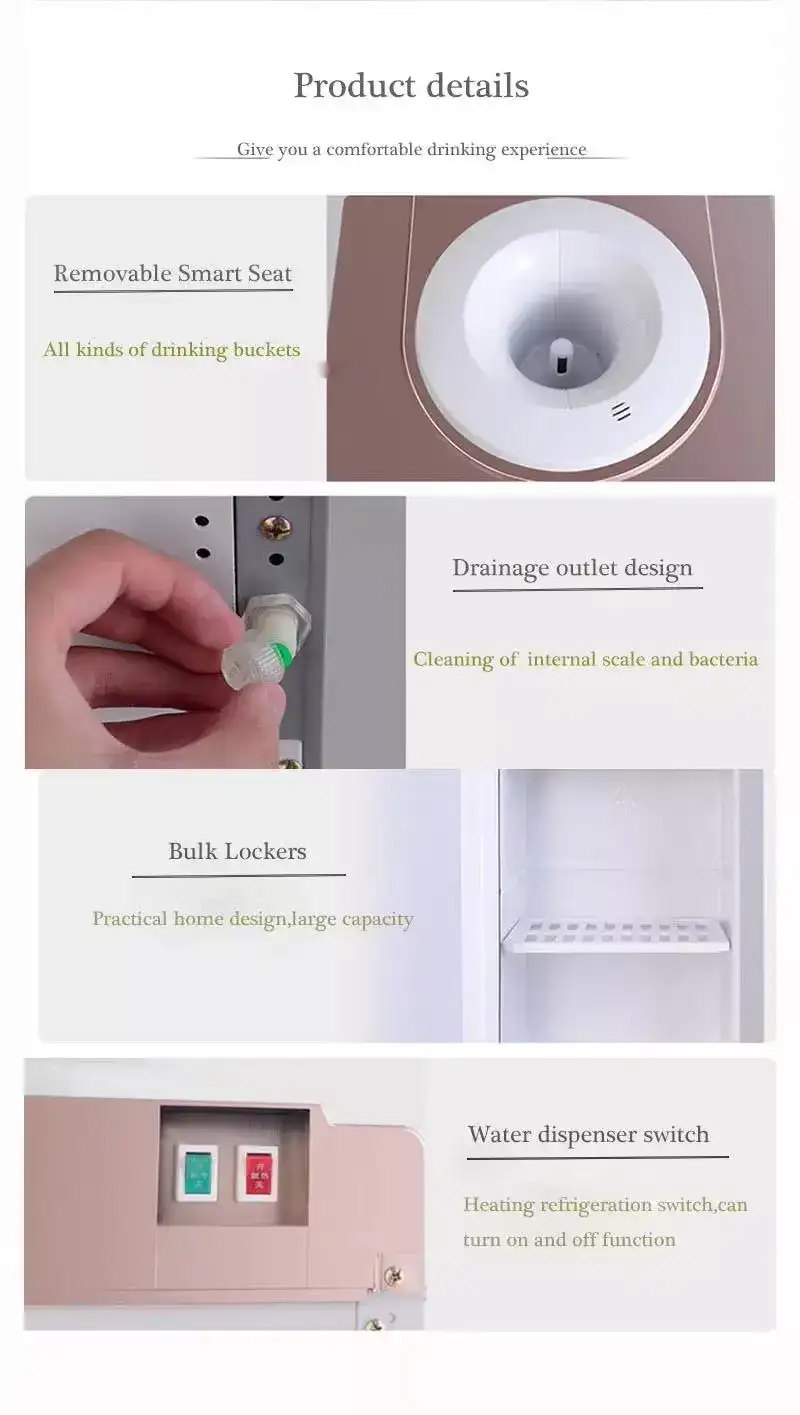

The main chassis is made from high‑impact ABS plastic, with the side panels reinforced by painted steel sheets that improve resistance to scratches and deformation over time. The top cover includes a removable guide ring that centres the water bottle during loading and helps prevent spills. The lower section houses a built‑in storage cabinet with a hinged door; the interior measures approximately 260 × 260 × 280 mm, making it suitable for keeping one spare 3‑gallon bottle, cups, tea or coffee supplies. The front‑mounted drip tray slides out without tools for emptying and cleaning. A child safety lock on the hot‑water faucet adds a layer of protection for households with young children.

Function & Safety Features

Water Heating & Dual Anti‑Dry‑Burning Protection

Hot water is stored in a 304 food‑grade stainless steel tank and heated by a 550 W element. A mechanical float switch and an electronic thermostat work together as a dual protection system: the float cuts power if the water level drops below the safe limit, and the thermostat disconnects the circuit if the tank temperature exceeds 95 °C. This prevents dry‑burning and extends the service life of the heating components.

Compressor Cooling & Temperature Output

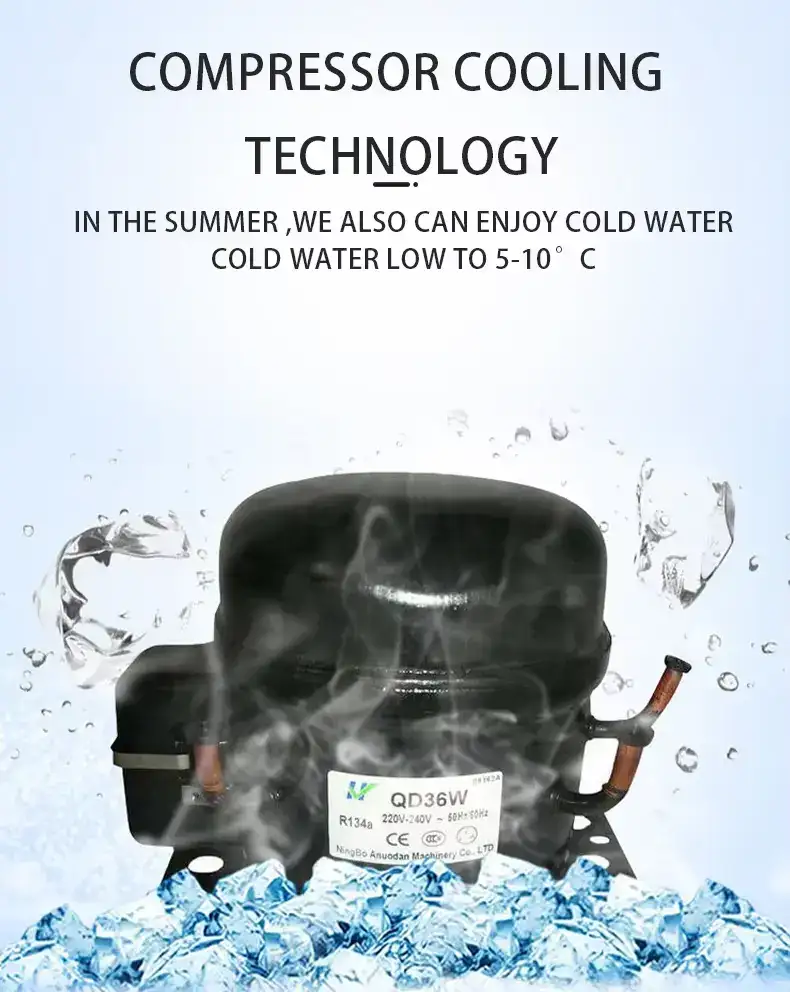

The cooling circuit uses a hermetic compressor that brings cold water down to 5–10 °C and cycles based on a thermostat reading inside the cold tank. The hot and cold circuits operate independently, so dispensing a large volume of chilled water does not affect the hot water supply. Warm water is dispensed at near room temperature. The unit does not require refrigerant top‑ups under normal residential or office use.

Push‑Button Dispensing & Cup‑Compatible Design

Each of the three faucets is operated by a push‑button. For users who prefer hands‑free operation, the spouts are shaped to allow cup‑pushing activation: pressing a cup or bottle against the lever behind the spout dispenses water without touching the button. This dual‑method approach is retained from Aofukang’s previous pipeline models and remains a standard feature on this top‑load unit.

Product Gallery

Certifications & Manufacturing Overview

The AFK-1707 is assembled and tested at Aofukang’s Cixi facility. Before packaging, every unit is checked for water circuit integrity, electrical safety (ground bond and insulation resistance), heating/cooling cycle performance, and final appearance. The certifications shown here are held by the factory and are applicable to this product for international shipment.

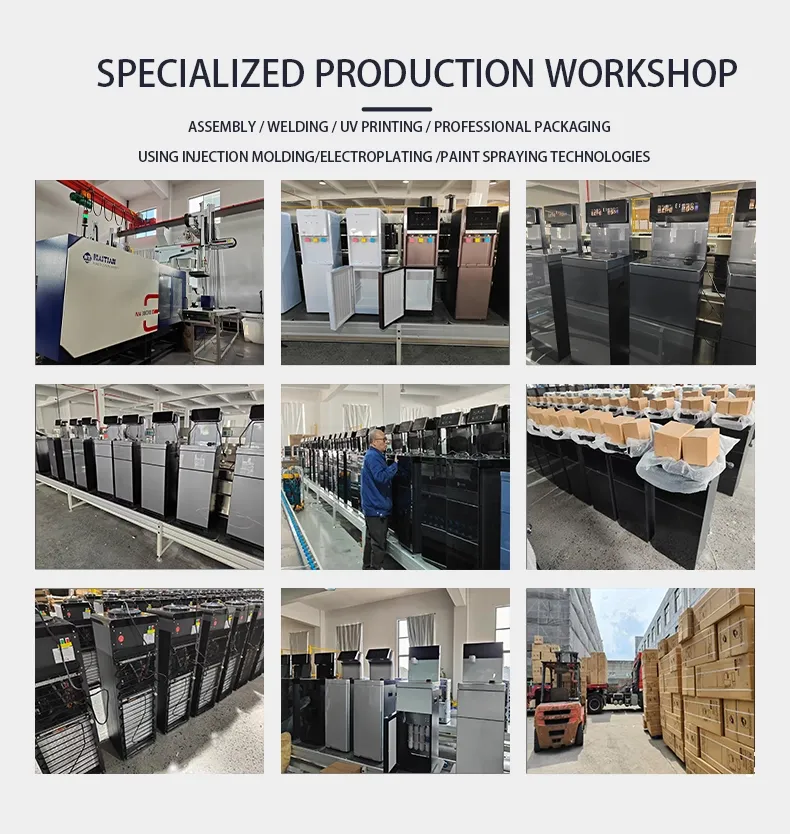

The production site covers 7,153 m², operates 6 assembly lines, and has an annual output above 300,000 units. In‑house injection molding, metal stamping, and a dedicated mold centre allow for direct quality control over components. OEM orders for custom logo, panel colour, or packaging can be arranged with a 100‑unit minimum quantity.
